The call-out

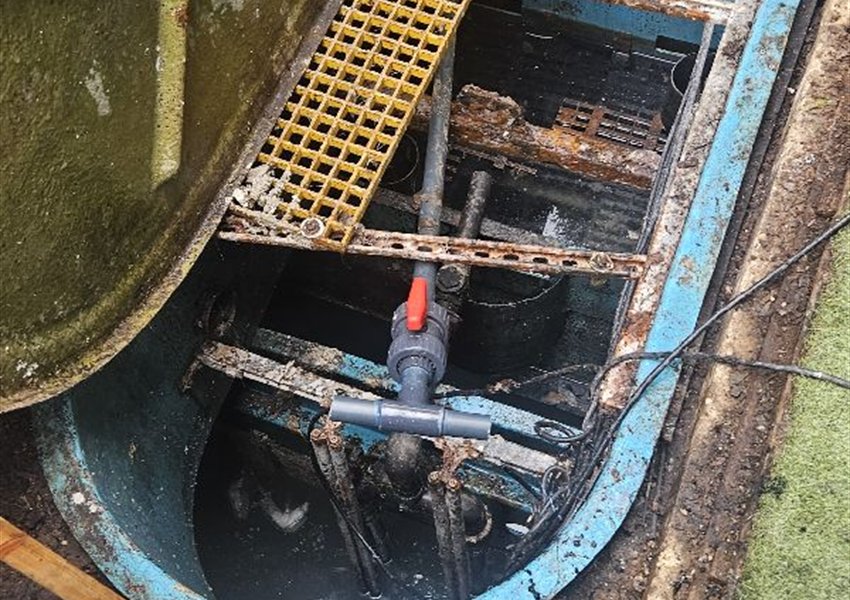

The call-out was for faulty pumps in a pump chamber.
The repair

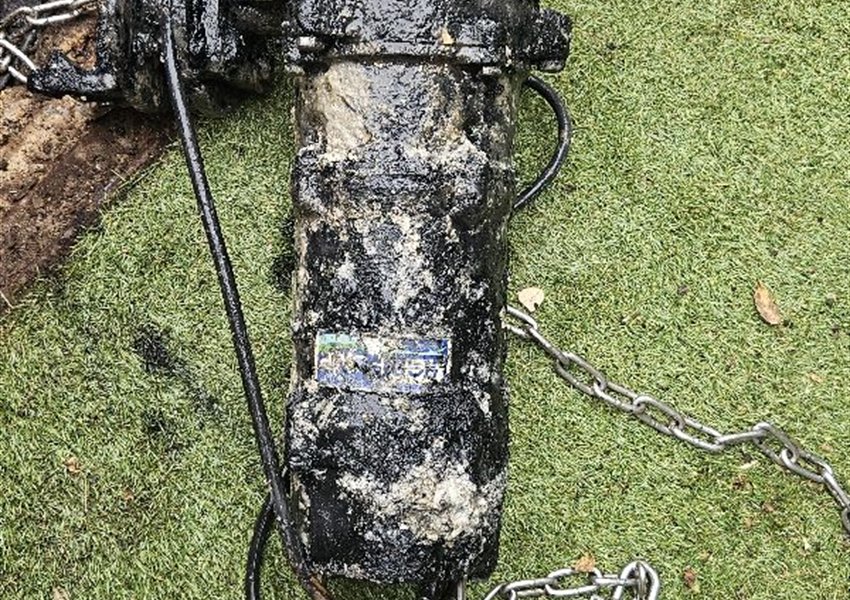

The engineer suspected that the non-return valves had failed. The pumps were removed and reinstalled free-standing on 40 mm pipework, with new non-return valves and a new shut-off valve.
Result and next step
Water now pumps away, but it is very slow. The engineer suspects further problems down the line from the chamber. The outlet from the chamber is a flexible hose.
Controls

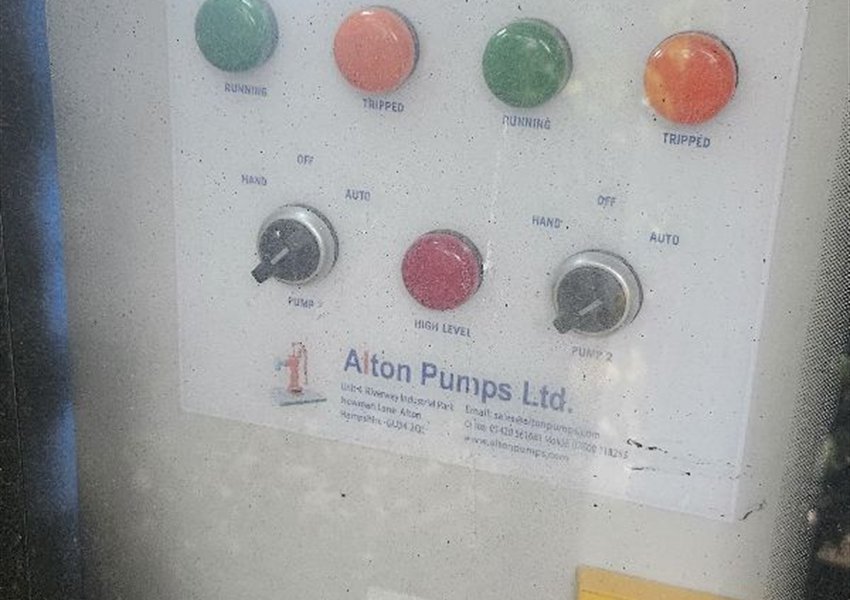

The photographs from the visit include the pump control panel.
Recorded outcome
- Suspected cause: failed non-return valves.
- Repair: pumps reinstalled free-standing on 40 mm pipework, with new non-return valves and a new shut-off valve.
- Result: water pumps away, but very slowly.
- Next step: further problems suspected down the line; the outlet is a flexible hose.
This case study is written from the completed job record. Photographs are from the job. Customer names and addresses are not published.
