The visit
The visit was to install a new junction box and to investigate an overflowing manhole.
What was found

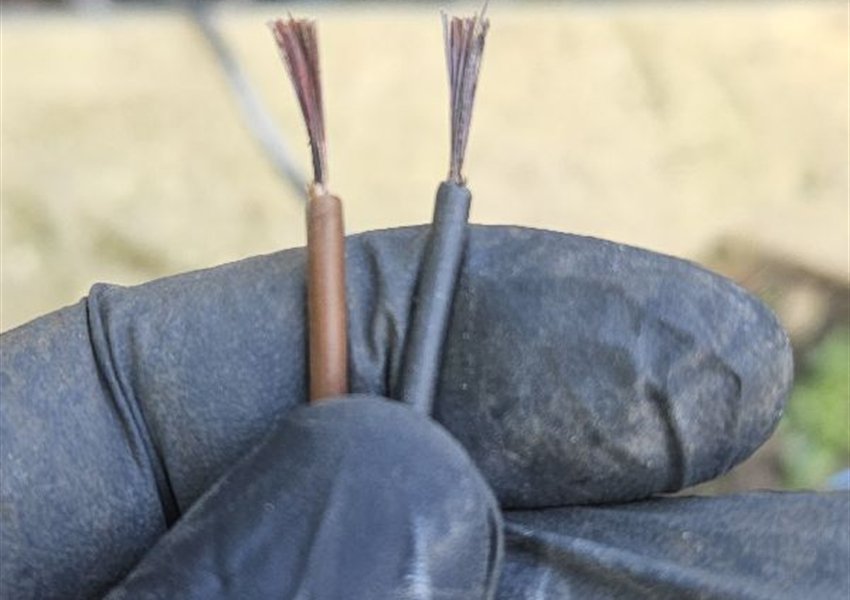

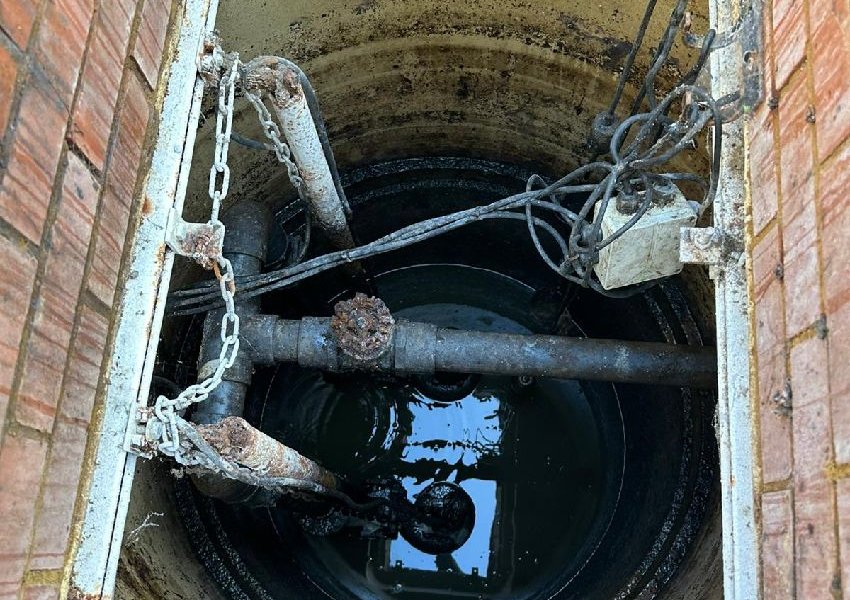

The float cables inside the tank were rotten. The wire snaps inside the insulation when the cables are stripped back. Two floats, the assist float and the high-level float, were not working because of water getting in. The junction box inside the tank was full of water.
What was done

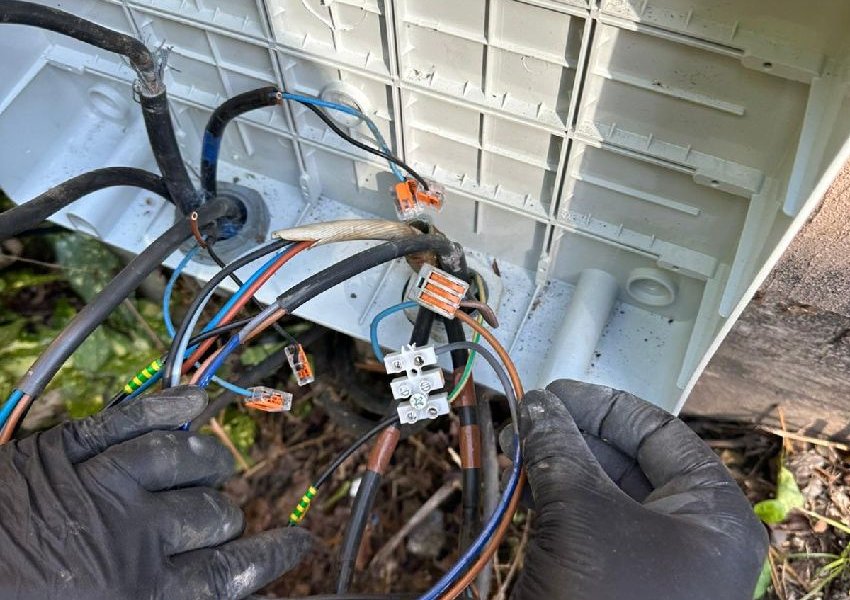

The junction box was replaced and the chamber was working in automatic.
Position at the end of the visit
At the end of the visit the chamber was running off only one float, and had no high-level float working.
Recorded outcome
- Faults found: rotten float cables, two floats not working and a junction box full of water.
- Repair: the junction box was replaced.
- Result: the chamber was working in automatic.
- Still outstanding: the chamber ran off one float, with no high-level float working.
This case study is written from the completed job record. Photographs are from the job. Customer names and addresses are not published.
